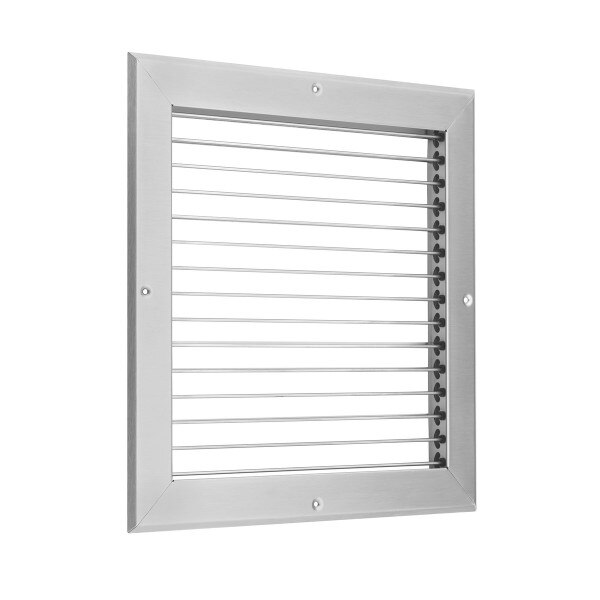

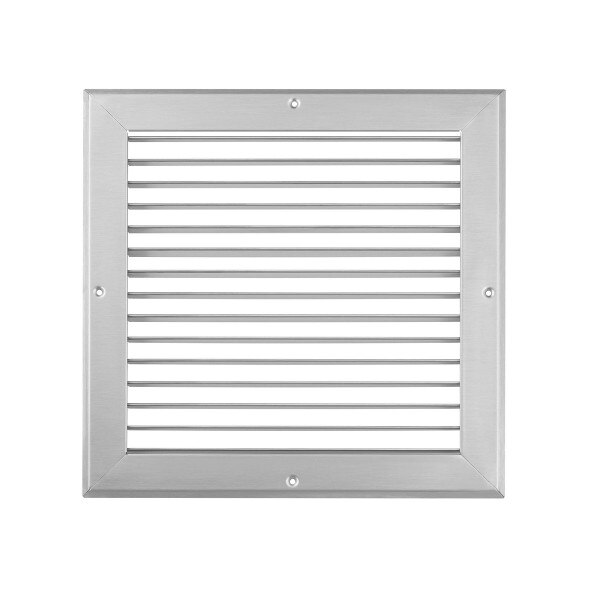

1AH: Single Deflection Stainless Steel Bladed Grille
Product Overview
KEES stainless steel bladed supply grilles feature a single set of horizontal adjustable blades for pattern control. Typical applications include harsh environments such as water treatment plants, pharmaceutical manufacturing, and industrial settings.
Construction Options
Construction
Blades are individually adjustable in single or double deflection patterns | 1/2", 3/4" (Std.), 1-1/2" and 3" blade spacing
Size
Single piece up to 72" x 72" | Combine multiple sections for unlimited sizing
Mounting Options
Surface mount | Plaster frame | Lay-in panel
Additional Options
Opposed blade damper | Subframe—grille removable or hinged | Filter frame | Transitions to round duct connection | Extractor
