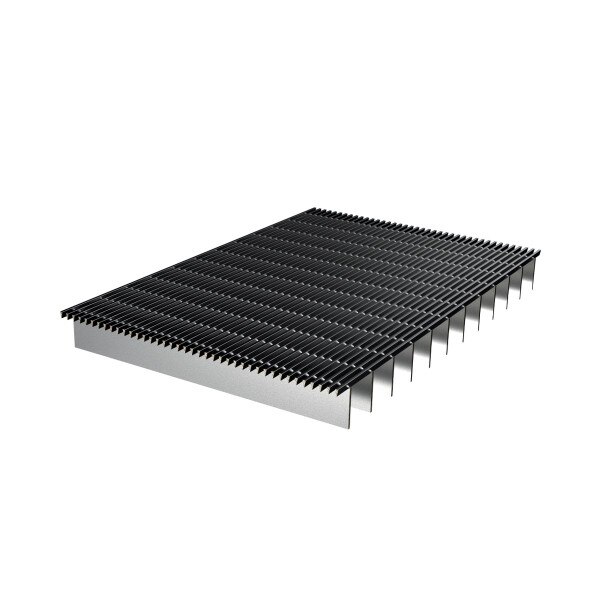

ABG-FLR: Architectural Bar Grille, Floor
Product Overview
KEES architectural floor bar grilles complement the visuals of a space while moving supply, return, or exhaust air. With an ultra-clean, modern appearance, our grilles fit under large windows in lobbies, offices, radiator cabinets, walls, and ceilings.
Materials
Aluminum | Stainless Steel | Brass | Various gauges to meet size & strength requirements
Finishes
Painted—standard and custom colors | Anodized | Oxidized | Satin polish
Size
Single piece up to 96" x 48" | Combine multiple sections for unlimited sizing
Bar Width & Configuration
1/8", 3/16". & 1/4" wide bars on various centers | 0 or 15 degree blade deflection
Frame & Mounting Options
Flanged or straight frame | Face or concealed mount | Fixed, hinged or removable core
Additional Options
Reduced depth for shallow applications | Stainless steel wire grating for special floor applications
