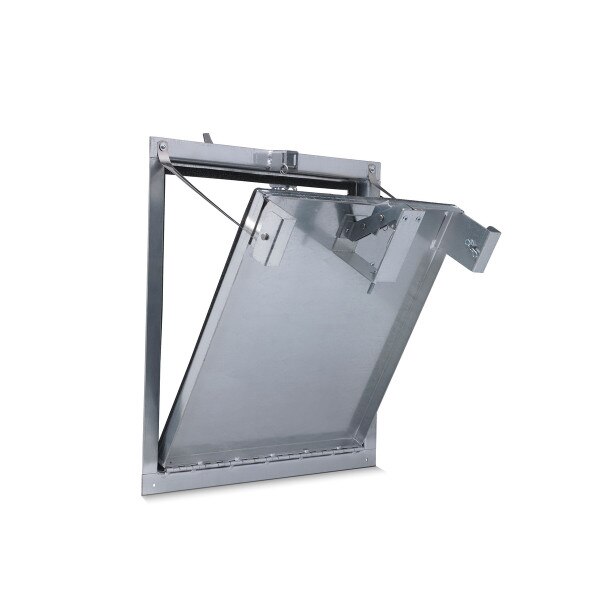

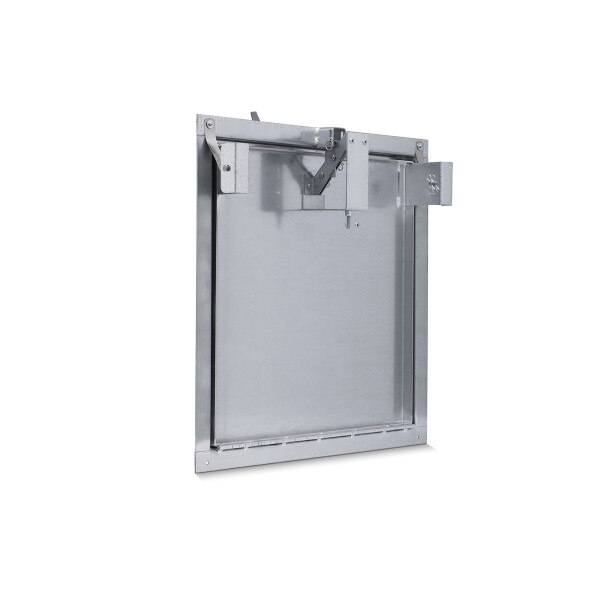

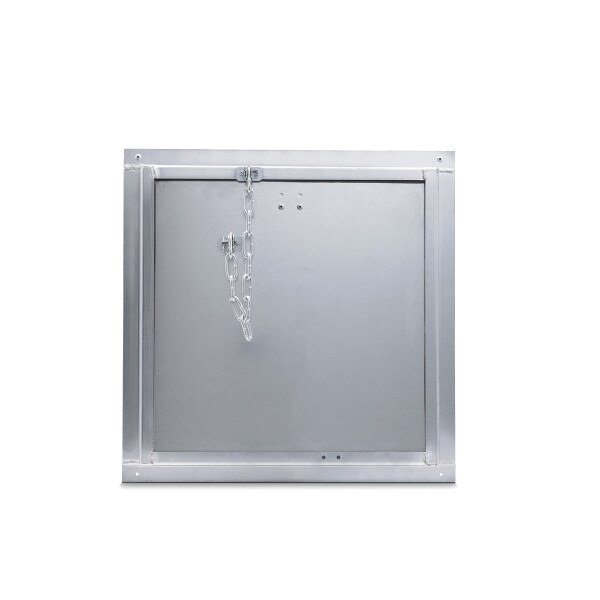

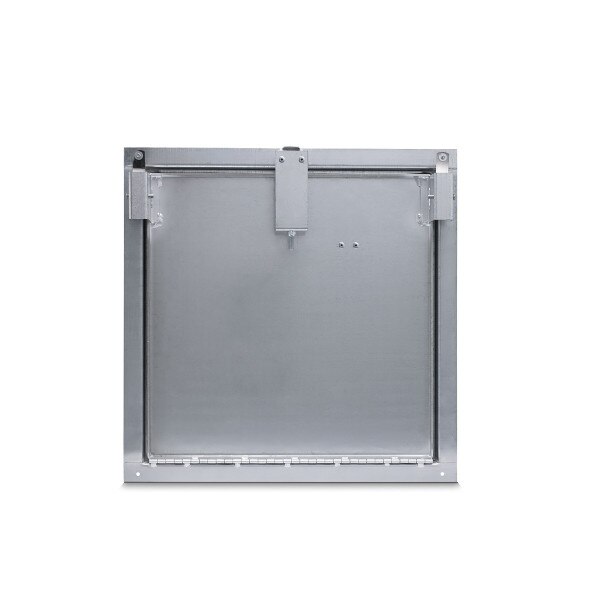

BO: Positive Pressure Relief Duct Access Door
Product Overview
KEES positive- and negative-pressure relief access doors prevent damage to ductwork under excessive pressure. Doors feature an adjustable latch, factory-preset for the desired release pressure. The closure springs automatically return the door to its closed position when pressure is relieved and the system is shut down. Install doors vertically with hinges at the bottom.
Construction Options
Materials
Galvanized Steel | 304 or 316 Stainless Steel
Size
From 10" x 10" to 24" x 24" | Custom sizes available
Door Attachment
Hinged—open out | Hinged—open in
Insulation
None, 1", or 2" fiberglass insulation
Mounting Options
Flanged
Pressure Ratings
Positive pressure: 3" to 10" wg | Negative pressure 1" to 10" wg
Additional Options
Viewport | Round duct mounting
