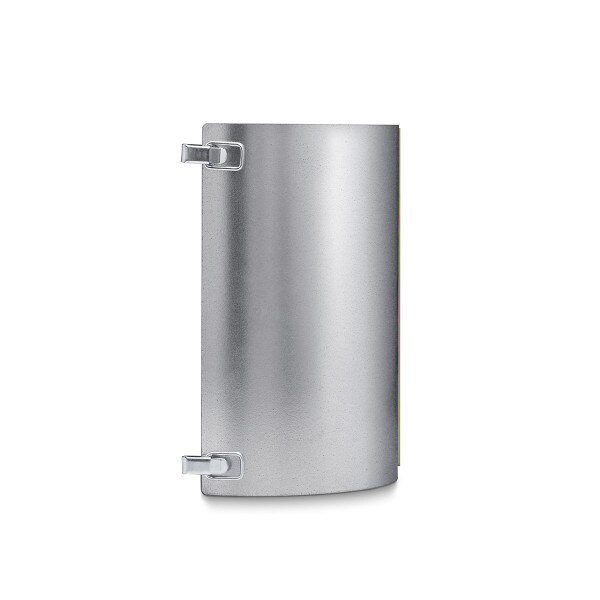

ADL-R: Curved Duct Access Door
Product Overview
KEES curved duct access doors are designed to fit round or oval ducts four inch in diameter and larger. Standard doors are suitable for low-to medium-pressure duct systems up to 6” w.g.
Construction Options
Materials
Galvanized Steel | 304 or 316 Stainless Steel | Aluminum
Size
From 6" x 6" to 36" x 36" | Custom sizes available
Door Attachment
Hinged—open out | Removable—cams only
Insulation
1" or 2" fiberglass insulation
Mounting Options
Tabbed in | Flanged
Pressure Ratings
Standard pressure: Up to 4.5" wg | High pressure: Up to 10" wg | Ultra pressure: Up to 20" wg
Additional Options
Viewport | Locks | Handles | Round duct mounting | Safety chain
