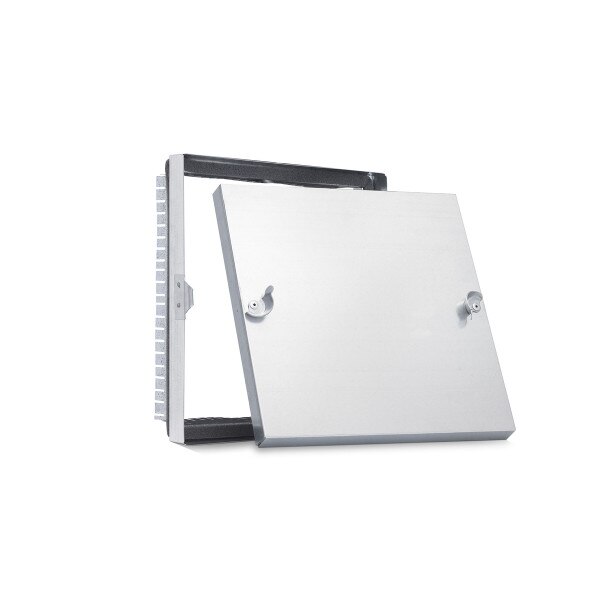

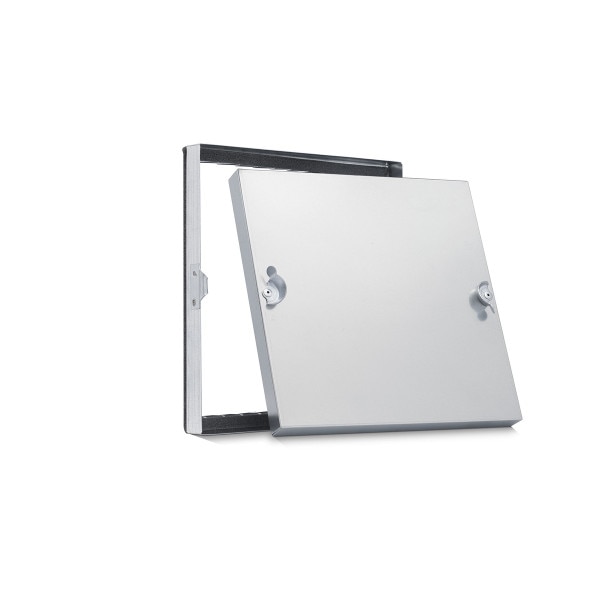

ADC: Duct Access Door
Product Overview
KEES duct access doors are easy to install and provide an economical means of access to the inside of ductwork. The fold-over tabs lock the frame into the opening. Sturdy double-wall insulated doors and gasketing prevent air leakage and heat transfer. Standard doors are suitable for low-to medium-pressure duct systems up to 4.5" w.g. while high-pressure versions are rated up to 10" w.g.
Construction Options
Materials
Galvanized Steel | 304 or 316 Stainless Steel | Aluminum
Size
From 6" x 6" to 36" x 36" | Custom sizes available
Door Attachment
Hinged—open out | Removable—cams only
Insulation
1" or 2" fiberglass insulation
Mounting Options
Tabbed in | Flanged
Pressure Ratings
Standard pressure: Up to 4.5" wg | High pressure: Up to 10" wg | Ultra pressure: Up to 20" wg
Additional Options

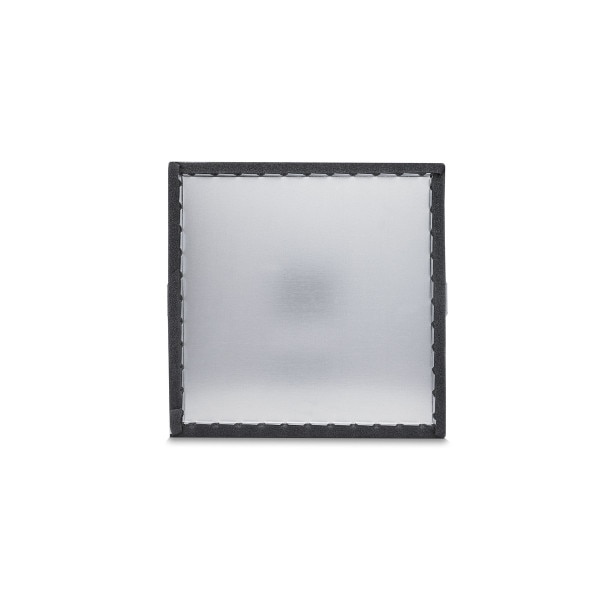

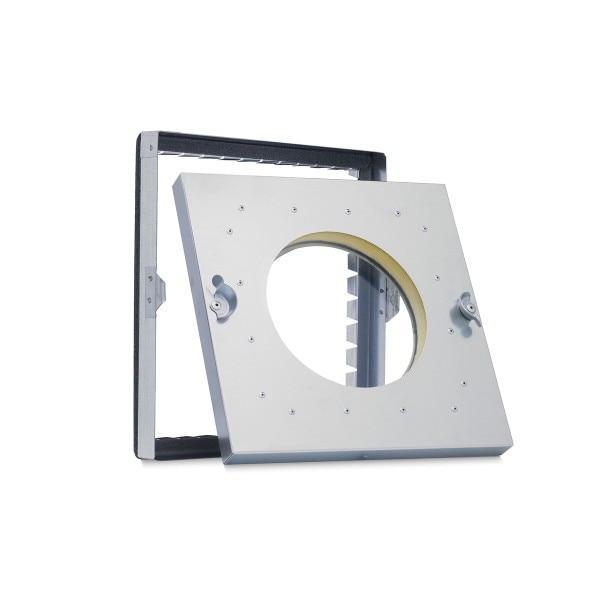

Viewport | Locks | Handles | Round duct mounting | Safety chain
