FC: Flanged Duct Access Door
Product Overview

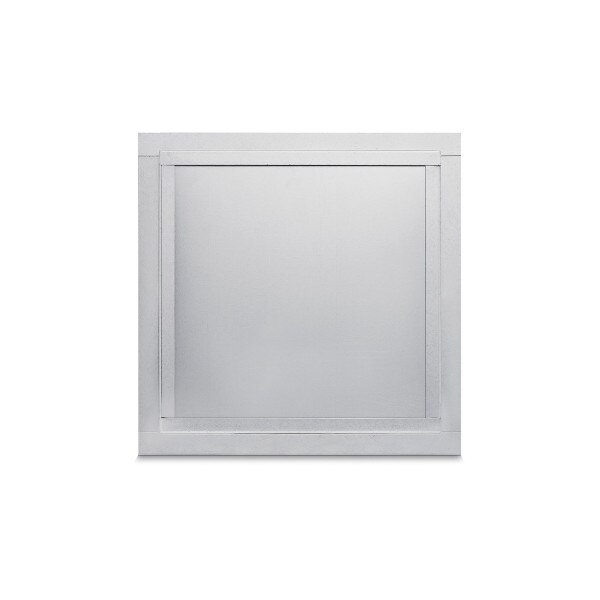

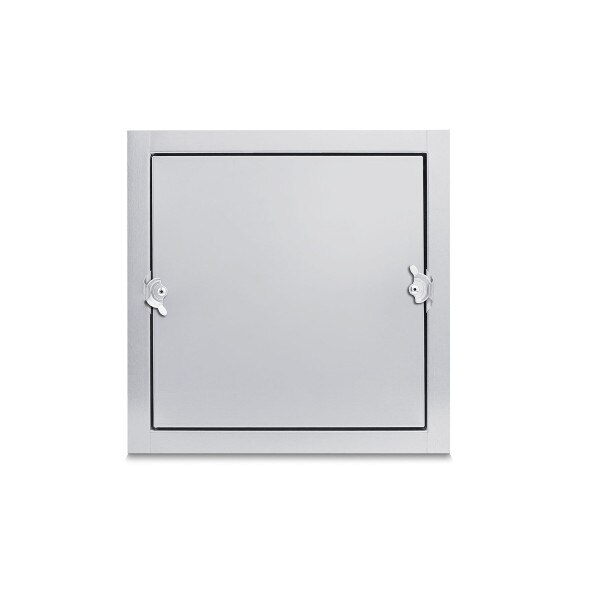

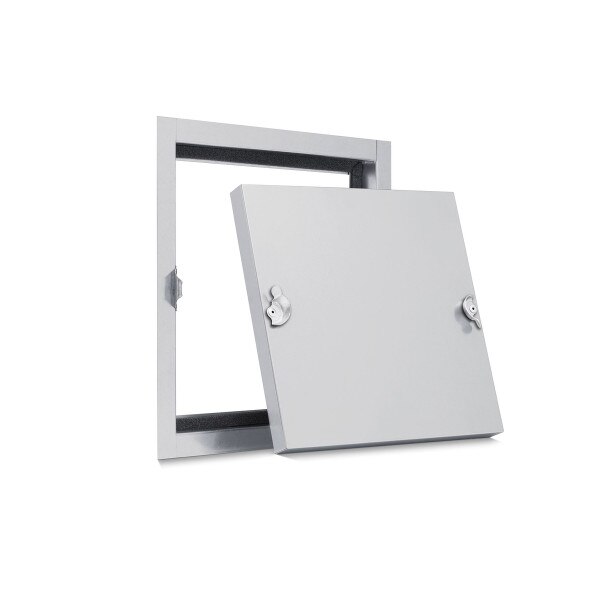

KEES insulated flanged duct access doors feature a double-wall and integral gasketed frame. The flange allows easy external fastening of the door to the ductwork and convenient access to internal ductwork components. Standard doors are suitable for low- to medium-pressure duct systems up to 4.5" w.g., while high-pressure versions are rated up to 10" w.g.
Construction Options
Materials
Galvanized Steel | 304 or 316 Stainless Steel | Aluminum
Size
From 6" x 6" to 36" x 36" | Custom sizes available
Door Attachment
Hinged—open out | Removable—cams only
Insulation
1" or 2" fiberglass insulation
Mounting Options
Tabbed in | Flanged
Pressure Ratings
Standard pressure: Up to 4.5" wg | High pressure: Up to 10" wg | Ultra pressure: Up to 20" wg
Additional Options
Viewport | Locks | Handles | Round duct mounting | Safety chain
