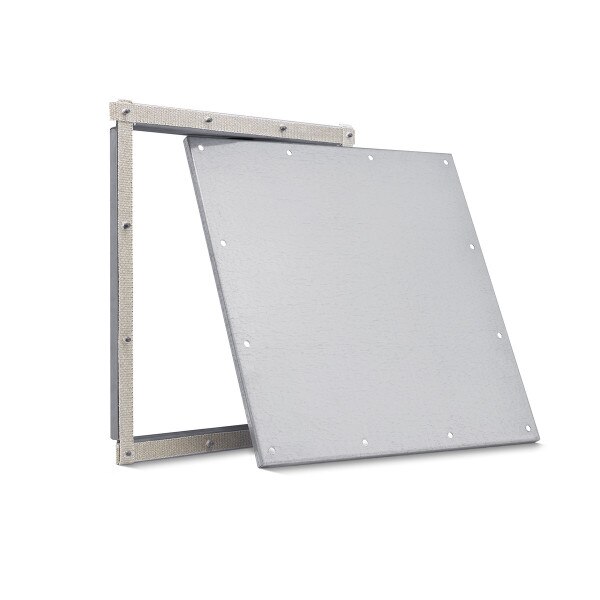

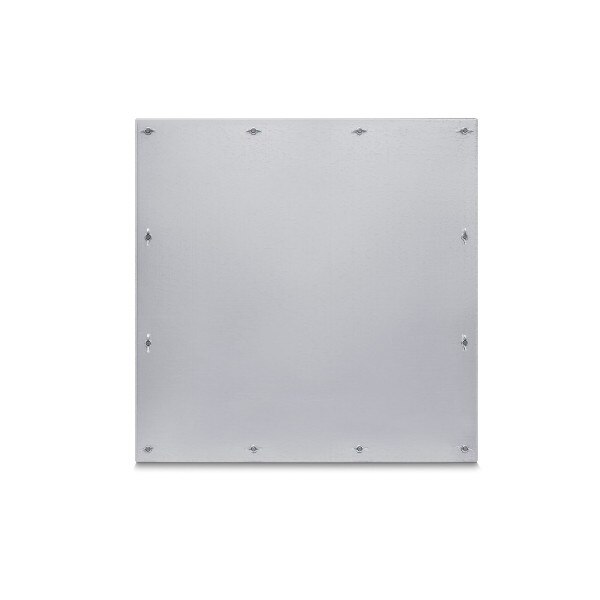

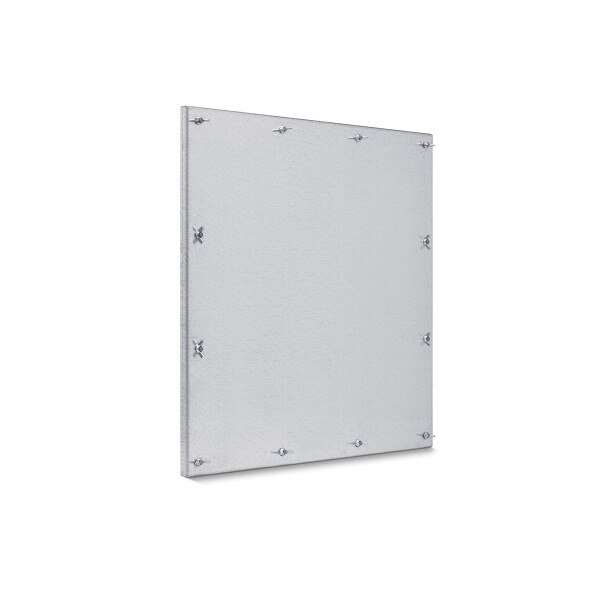

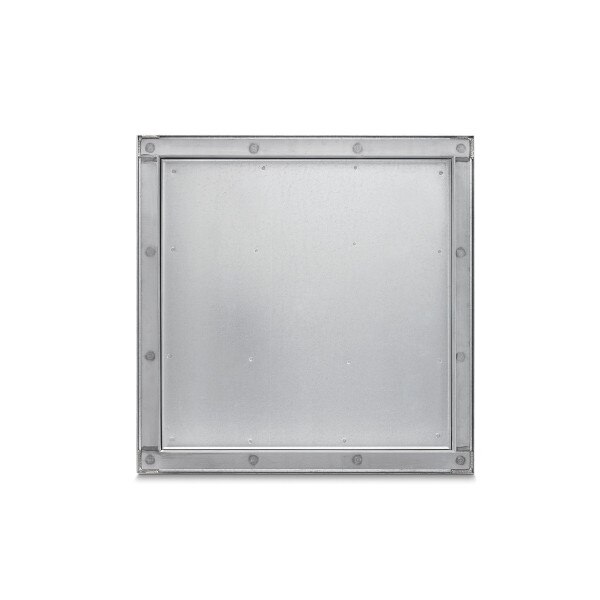

KEDA: Kitchen Grease Duct Access Door - Welded
Product Overview
KEES kitchen grease exhaust duct access doors provide efficient access to the interior of welded grease ducts. Use this product to facilitate inspection and cleaning and help prevent dangerous grease buildup. Welded to the side or top of ducts, a ceramic fiber gasket maintains a greaseproof, fire-tight seal and allows use with temperatures up to 2300°F. These UL-listed doors meet NFPA-96 requirements.
Construction Options
Materials
Galvanized Steel | 304 Stainless Steel
Size
From 6" x 6" to 20" x 20" | Custom sizes available
Door Attachment
Removable—bolted
Insulation
None
Mounting Options
Welded frame | Bolted frame
Certifications
UL listed to meet NFPA-96 | 23000°F rated gasketing
Additional Options
Round duct mounting
