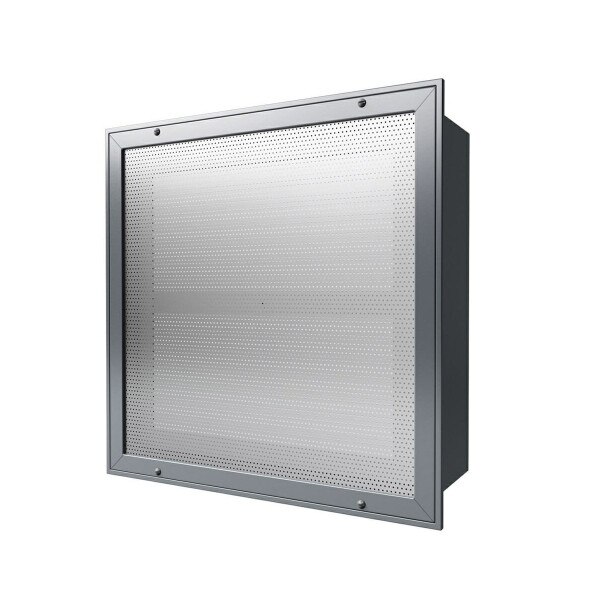

LA-HF: Laminar Flow Diffuser, HEPA Filter
Product Overview
KEES Stainless Steel Laminar Flow Diffusers with HEPA Filters use laminar flow technology to produce a non-aspirating, low velocity, uniformly distributed downward moving “piston” of conditioned air, creating a sterile environment directly below. Designed to accommodate a Gel Seal HEPA or ULPA filter, which can be easily removed and replaced. Ideal for operating rooms and other clean room applications, such as research laboratories, animal laboratories, food processing plants, pharmaceutical laboratories, and protective environment rooms.
Features
Foil backed insulation | HEPA-lert filter monitor | Test ports | PAO challenge system | Diffuser basket | Dual perf | Hinged face frame | Seam welded inlet collar | Hard ceiling clamping system | Hanger brackets
Materials
304 stainless steel (Std.) | 316 stainless steel
Finishes
Polished | Antimicrobial powder coat | Other finishes available
Faces

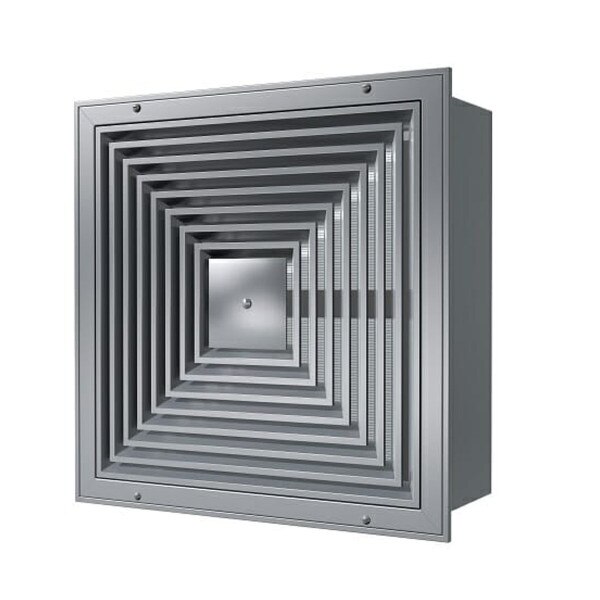

Perf face | CLCD face | Swirl face
Perf Options
13% - Standard | 23% - Medium | 33% - High | 51% - Max
Filters
ULPA filter
Lighting
Color: White; Preset at 5000K; 90+ CRI | Color: White; Preset; 90+ CRI | Color: Turnable from 2700K-6500K via 0-10VDC dimmer; 90+ CRI | Other colors | Battery backup
Damper Type
SSRD – Butterfly damper | SSBD – Bowtie damper | SSDD – Disc damper | SSSD – Slide damper
Damper Options
Remote damper
