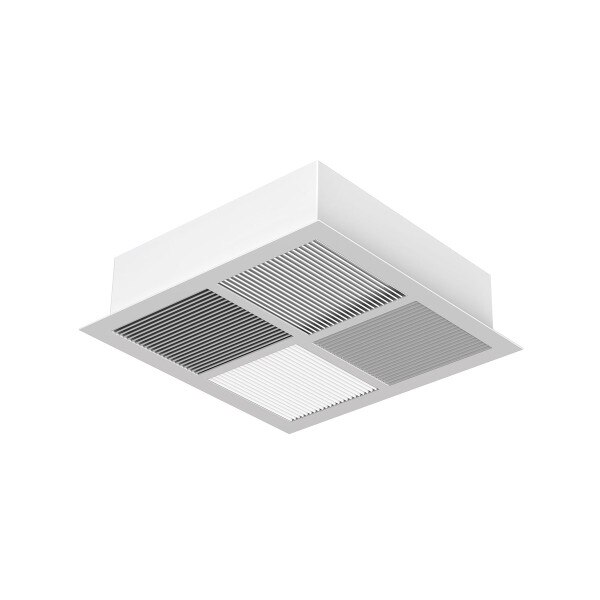

SEG-14D: "Z" Passageway Diffuser
Product Overview

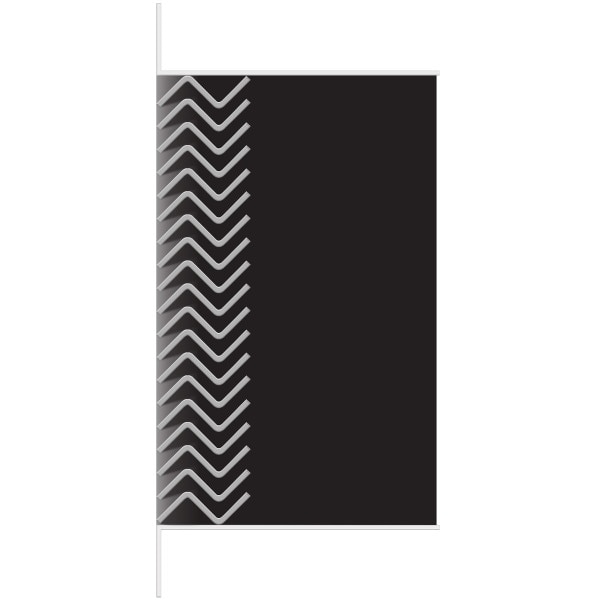

KEES passageway diffusers are 12-gauge steel security diffusers with Z-shaped louvers. With 3/16 inch openings between the horizontal louvers, a securely welded faceplate, and a white two-part polyurethane finish, this product is ideal for applications in behavioral health facilities, correctional facilities, and hospitals.
Materials
Various gauges of steel | Stainless steel | Aluminum
Finishes
Painted—standard and custom colors | Satin polish (stainless steel & aluminum)
Face Configurations
Passageway (V, Z, or W) | Perforated | Lattice
Diffuser Style
Modular | Louvered | Curved blade
Size
Single pieces up to 24" x 24" | Custom sizes available upon request
Throw Patterns
1-, 2-, 3-, or 4-way
Mounting Options
Tamper-resistant security screws through faceplate | Rear mounting angles | Lay-in (drop-in or lock down)
Additional Options
Volume dampers | Screens (woven mesh, bird and insect) | Integrated security grate in sleeve | Square to round transitions| Plenums | Hinged or removable faces | Filter frames
