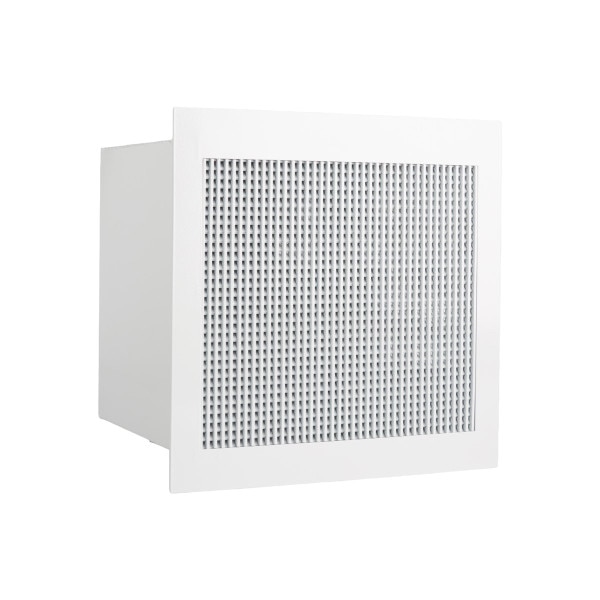

SEG-15B: "W" Passageway Grille with Supports
Product Overview

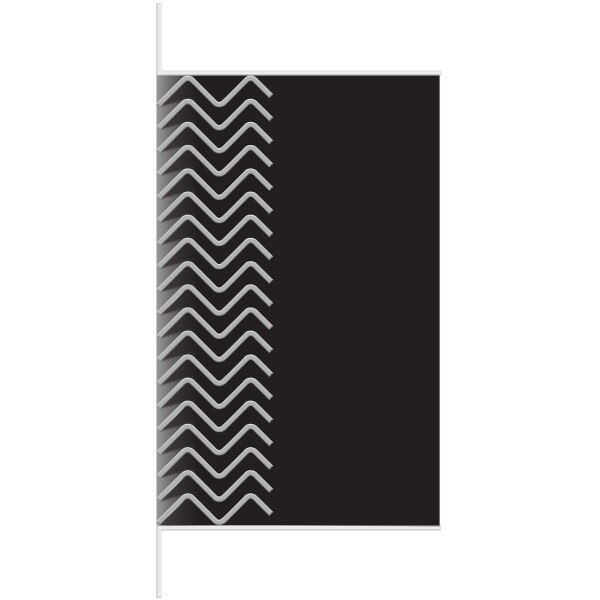

KEES passageway grilles are 12-gauge steel security grills with W-shaped louvers and vertical supports. With 3/16 inch openings between both the horizontal louvers and vertical supports, a securely welded faceplate, and a white two-part polyurethane finish, this product is ideal for applications in behavioral health facilities, correctional facilities, and hospitals.
Materials
Various gauges of steel | Stainless steel | Aluminum
Finishes
Painted—standard and custom colors | Satin polish (stainless steel & aluminum)
Face Configurations
Passageway (V, Z, or W) | Perforated | Lattice | Bar-style
Size
Single piece up to 48" x 48" | Combine multiple sections for unlimited sizing
Mounting Options
Angle frame—fully welded and sent loose for field install | Tamper-resistant security screws through faceplate | Masonry anchors or studs for cast-in-place concrete
Additional Options
Volume dampers | Screens (woven mesh, bird and insect) | Integrated security grate in sleeve | Square to round transitions | Hinged or removable faces | Filter frames
